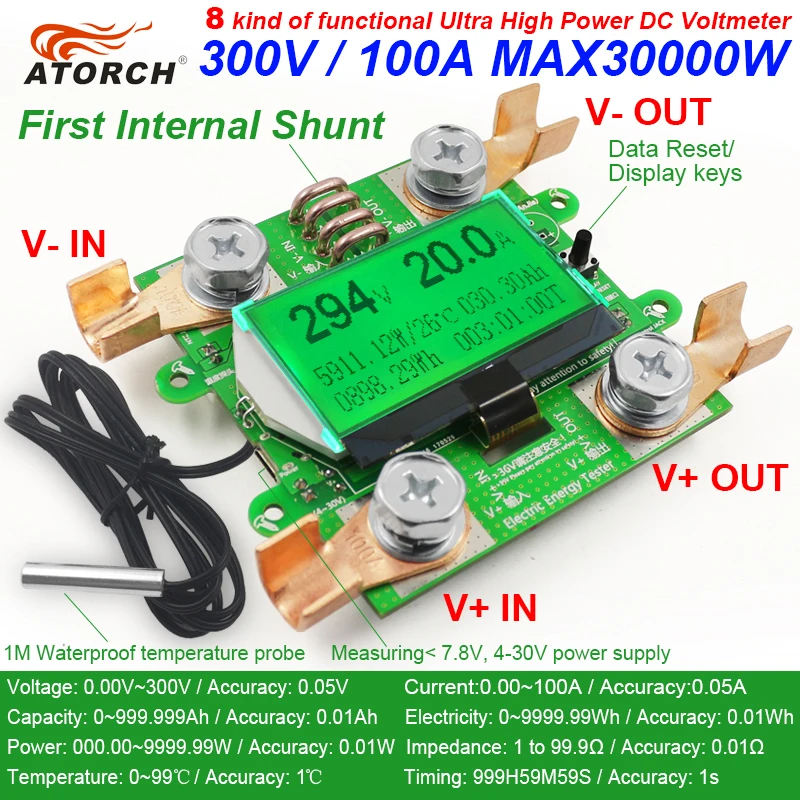

ATORCH Accurate Energy Meter Voltage Current Power DC 300V/100A Voltmeter Ammeter Greem Backlight Overload Alarm Function indoor
Voltage Precision evaluation:
Current Precision evaluation:
DPT3010--DC300V100A Shell Volt meter
Input: ① Various power adapter ② Various batteries ③ Various Power Bank
output:④A variety of thermal resistance⑤Various load meter⑥Various constant current load
Specification:
Input/output interface: 100 A Large current copper nose screw Voltage range: 0.00 V ~ 300 V Resolution precision: 0.05 V Current range: 0.00 A ~ 100 A Resolution precision: 0.05 A Capacity range: 0 ~ 999.999 Ah Resolution precision: 0.01 Ah Power cumulative range: 0 ~ 99999.9 Wh Resolution precision: 0.01 Wh Power range: 000.00 ~ 2999.99 W Resolution precision : 0.01 W Impedance range: 1 ~ 999.9 Resolution precision: 0.1 Temperature range: 0 ~ 99 ℃ Resolution precision: 1℃ Timing maximum time: 999H59M59S Resolution precision: 1S Timing remind Settings: the countdown 24 hours of any value Small current standby alert threshold parameters: < 2 W / 0.5 H Small voltage power supply requirements: measuring < 7.8V low voltage, please supply independent power supply interface Range of 4 ~ 30V dc power supply voltage to the measurement system Time to refresh: > 500 ms/time > 500 ms/times Measurement rate: 0.5 times per second Over-voltage over-current set the alarm mode: display warning interface to alert users Overpressure to remind the set range: 1 ~ 300V Low pressure remind set range: 0 ~ 149V Flow to remind the set range: 0.2 ~ 100A Display type: micro power consumption of LCD module LCM black font green backlit display in both Chinese and English Product size: 105 x 81 x 17mm Since the power flow: < 0.02 A Working temperature: - 10 ~ + 60 degrees Celsius - 10 ~ + 60 ℃ Working humidity: 10 ~ 80 (dew) undoubtedly 10 ~ 80 (no doubt) The pressure of work: 80 ~ 106 kpa Operation method: Keystrokes using method and the capacity, power, time reset Settings: 1) Reset button long-press all data （mAh、Wh、00:00:00） 2) Quickly button twice - capacity Reset （mAh） 3) Quickly button three - power reset（Wh） 4) Quickly button four - time reset（00:00:00） 5) Quickly button five - Set up automatic standby and Discharge the countdown to remind regularly 6)When no load output no-load, quick seven keys, and for the current zero to zero in the current environment temperature for accurate calibration, so more can do more accurate measurement in small current. 7)Click the switch interface, in the high voltage low voltage when backlit parameter Settings, by double Strike and three strikes for parameter adjustment, the adjustment process long press is a continuous fast speed value adjustment. Key functions: 1) Keep Press long time the key: Zero all data(mAh,Wh,00:00:00) 2) Double-click the key: for the Capacity data reset to zero 3) Three-click the key:for the electric quantity data reset to zero 4) Four-click the key: for the time data reset to zero 5) Five-click the key: Auto-Standby Mode & Timer for discharge alert 6) Single-click to change the window, entering the setup window for high&Low Voltage background light, adjust the parameters by double-clicking or three-clicking, click-holding for continuous and quick adjust. 7)Without load,quickly click the key for 7 times, for current data reset to zero(0.00A).It is for Precise calibration in local circumstance, so that the small current could be precisely measured. 8) Keep pressing the key when power-off, then power-on, entering the Background setup window for High&Low Voltage over-load, single-click or double-click to adjust the parameters, keep press the key long time to reset to the default setup (Note: Please don\'t calibrate the voltage or current if without standard instruments)Successful cases:
Product Description:
Input interface / output interface: 100A large current full copper nose clip way
Voltage measurement range: 0.00V ~ 300V Resolution accuracy: 0.05V
Current measurement range: 0.00A ~ 100A Resolution accuracy: 0.05A
Capacity accumulation range: 0 ~ 999.999Ah Resolution accuracy: 0.01Ah
Electricity accumulation range: 0 ~ 9999.99Wh Resolution accuracy: 0.01Wh
Power measurement range: 000.00 ~ 9999.99 W Resolution accuracy: 0.01W
Impedance measurement range: 1 ~ 99.9 Europe Resolution accuracy: 0.01 Europe
Temperature measurement range: 0 ~ 99 degrees Celsius 0 ~ 99 ℃ Resolution accuracy: 1 degrees Celsius
Timing maximum time: 999 hours 59 minutes 59 seconds Resolution accuracy: 1 second
Timing measurement reminder settings: countdown 24 hours any set value
Small current standby to remind the threshold parameters: <2W / 0.5 hours
Small voltage measurement Power supply requirements: measure <7.8V voltage, please give independent power supply interface supplier 4 ~ 30V range of DC voltage to the measurement system power supply
Refresh time:> 500mS / times> 500mS / times
Measurement rate: about 0.5 times / sec
Overvoltage Overcurrent Setting Alarm Mode: Siren Sound + Display Prompt Dual Warning
Alarm Interface Output Voltage / Impedance: 3.0V / 2200 Euro
Display Type: Micropower LCD Module LCM Black Font Green Backlight Chinese & English Display
Product Size: 100mm * 100mm * 18mm
